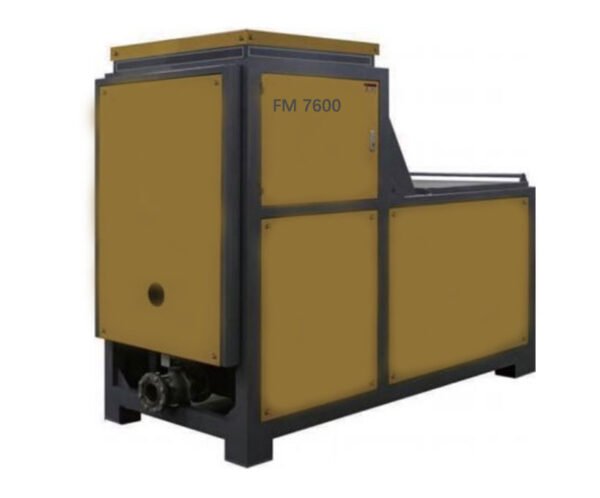

FM 7600 Multi-Purpose Asphalt Fiber Feeder for Road Reinforce

FM 7600 Multi-Purpose Asphalt Fiber Feeder for Road Reinforce and working principle:

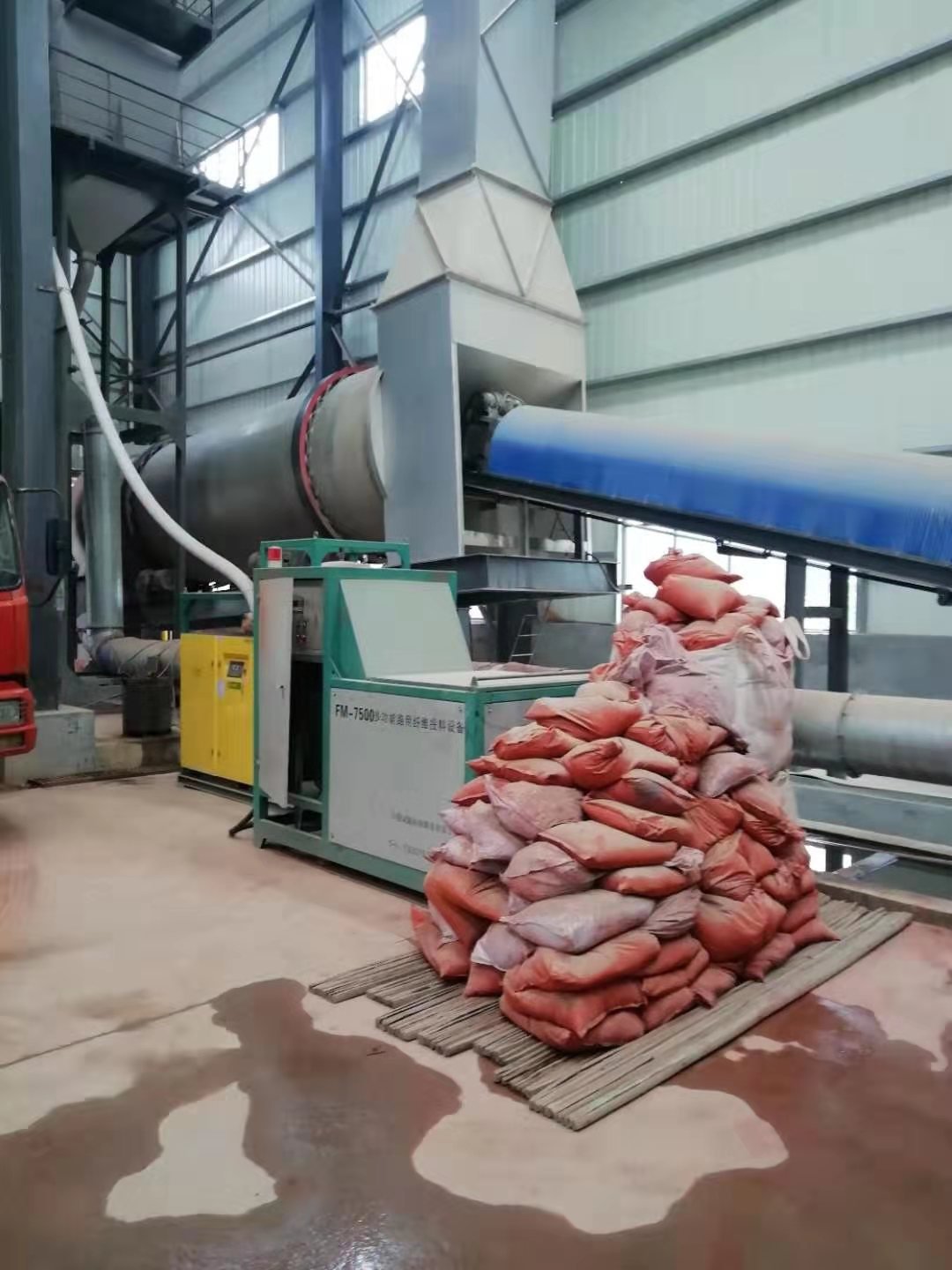

FM-7600  Asphalt Fiber Feeder is  composed  of main  frame,  base, upper bin cover, bin door, bin, spiral elevator, first mixing tooth, material pump, feed valve, air inlet valve, discharge valve, gas storage tank, weighing system, electric control box, cabin door, enclosure plate and so on.

The system operates through dual-shaft mixing teeth in the silo that   disperse   materials.   Simultaneously,   a   screw   elevator delivers pre-measured quantities into the feed pump. After the weighing system completes measurement control, the computer activates valves to inject compressed air into the pump. When the  mixing  station’s  signal  is  received,  the  discharge  valve opens.  The  pressure  differential  between  the  pump’s  interior and exterior instantly releases material, rapidly transferring the pre-measured  quantity  into  the  mixing  station’s  tank.  This process  efficiently  completes both measurement  and material transfer tasks.

Important Asphalt Fiber Feeder features:

Mainly use pneumatic parts, mechanical moving parts  are  few, the failure rate is very low; long-term use stability, low maintenance cost;  Can transport large weight, large volume of materials;  Multi-function, flexible application; Fast delivery speed, can save mixing time; high work efficiency; Fully  intelligent  design, reduce  manual; design a variety of safety devices, prevent.

FM7600 Asphalt Fiber Feeder performa- nce parameters: mass: 1050kg

Efficiency: 12.5kw (excluding air compressor)

Operating voltage: 380v50Hz

Rated current: 25A

Storage capacity: 0.8m³

Weighing range: 1–240kg

Delivery speed: 10-18kg”/(s)

Transportation distance:>200m

Transportation height:>120m

Signal interface: wired DC12v, DC24v, AC110v, AC220 v; wireless switch quantity, analog signal, pulse signal

Communication interface: serial port 232,485, Ethernet, GPIB,

USB, wireless, 4G communication (optional) Shape size: 2410mm×1130mm×2070mm

Usage pressure: 4-6par

Pipeline size: inner diameter 100mm–114mm

Applicable materials: toner: <240kg

Mineral powder: <255kg

Cement: <210kg

Gravel: <260kg

Rock asphalt: <200kg

Rubber powder: <130kg

Anti-rutting agent: <82kg

High viscosity: <50kg

Warming agent: <80kg

Antifoam agent: <85kg

Lignin fibres with flocculent structure: <25kg

Granular lignin fiber: <60kg
